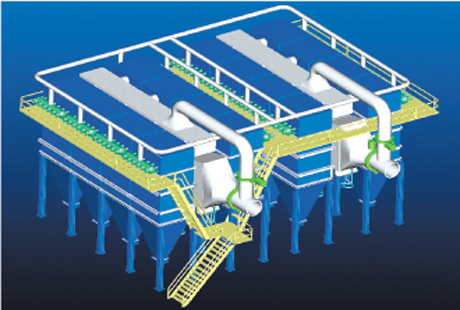

Diamond Integrated Bag Filter

The diamond baghouse FFLD (LLZB) is a new type dust removal equipment, the bag in a flat plate shape with a cushion similar to each bag along the longitudinal seam few slopes, so that the re-divided into a number of elongated pouch. In each pouch is inserted into the unique design of the skeleton, to make up outwardly open, in order to ensure that the pressure in the filtration process can not be deflated, the excessive deformation is not caused in the process of cleaning dust laterally. This arrangement the bag full use of the space of the housing, it can be reduced as compared with the round bag 1/2 the volume of the volume. The unit consumption of about 10% less steel than the low-pressure pulse bag filter.
The use of pulse gas cleaning dust and unique hanging way, the machine body is not movable member, and effective use of a shock wave of the pulse stream, there is no mechanical damage to the bag fibers, extend the life of the filter bag. A thorough cleaning, the pressure loss is relatively stable, dust long-term continuous operation. Loading and unloading of the bag due to the use of prefabricated equipment, fixtures, loading and unloading time just a few minutes. Even if the work in conditions of high air to cloth ratio, satisfactory removal efficiency can be obtained.
